CPVC for Potable Water and Safety Certifications
[Mascom Global] When it course to the infrastructure of modern residential and commercial buildings, the selection of piping materials for drinking water is one of the most critical decisions for engineers and developers. Among the myriad of choices, CPVC (Chlorinated Polyvinyl Chloride) has distinguished itself as a premier solution. This article explores why CPVC for potable water is a global standard and examines the rigorous safety certifications that guarantee its reliability.
Understanding the Chemistry of CPVC for potable water
CPVC for potable water is a unique thermoplastic produced by the post-chlorination of polyvinyl chloride (PVC) resin. While they share a common lineage, the extra chlorine atoms in the CPVC molecular structure provide a significant boost in performance. This chemical modification allows CPVC to handle temperatures up to 200°F (93°C) , far exceeding the limits of standard PVC.
In the context of potable water, this stability is paramount. The material does not react with the oxygen dissolved in water, nor is it susceptible to the oxidative degradation that often plagues other plastics like PEX. For the end-user, this means the water reaching the tap remains as pure as it was at the source, free from plastic-related tastes or odors.

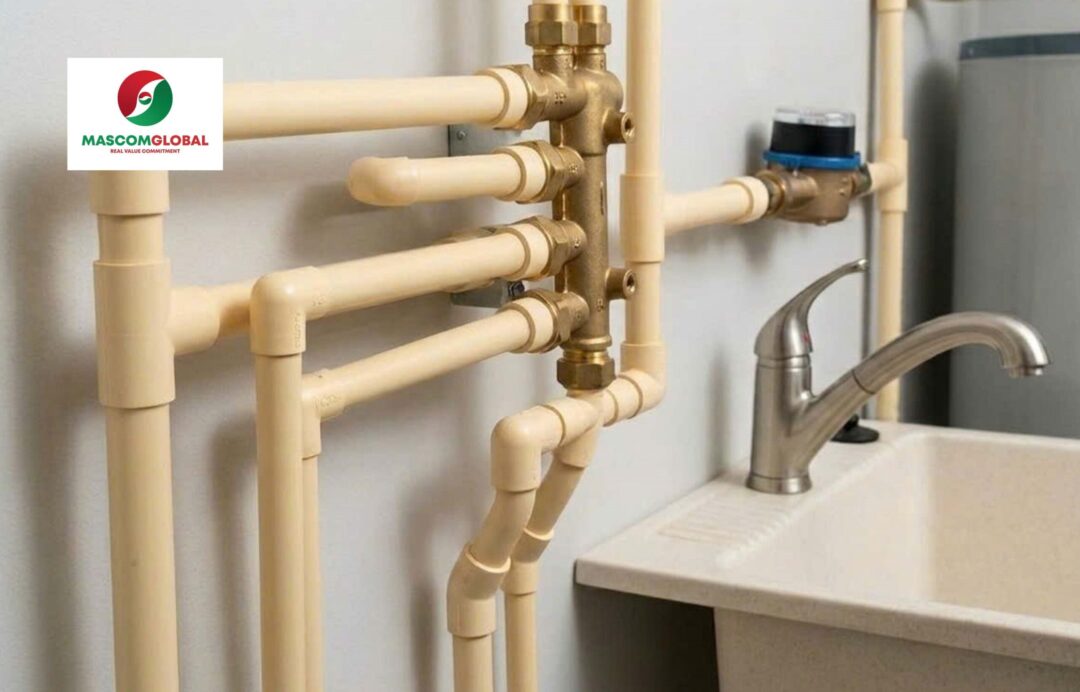

Why CPVC for potable water is Superior for Drinking Water Systems?
(Illustrative purposes only)
- Unmatched Corrosion Resistance
Traditional metal pipes, such as copper or galvanized steel, are prone to pitting and scaling. Over time, these metallic pipes can leach heavy metals into the water supply or suffer from pinhole leaks due to aggressive water pH levels. CPVC for potable water is completely immune to galvanic corrosion, ensuring a service life that often exceeds 50 years without internal degradation.
- Superior Biofilm Resistance
Biofilm — a colony of bacteria and microorganisms — can attach to the inner walls of pipes. Research has shown that CPVC has a smoother interior surface (C-factor of 150) compared to metal and even some other plastics. This smoothness makes it much harder for bacteria like Legionella to take hold, maintaining a higher standard of hygiene throughout the building’s plumbing network.
- Chemical Stability Against Disinfectants
Municipalities use chlorine or chloramines to disinfect water. These chemicals can be harsh on plumbing. While some polyolefin pipes may become brittle when exposed to chlorinated water, CPVC is inherently resistant because it is already chlorinated. This makes it the most robust “final mile” delivery system for treated city water.
Critical Safety Certifications to Look For
To ensure that CPVC for potable water products are safe for human consumption, they must undergo rigorous testing by independent organizations. If you are sourcing CPVC for potable water, look for the following marks:
NSF/ANSI 61: The Health Standard
The NSF/ANSI 61 certification is the most vital. It evaluates the health effects of drinking water system components. To pass, CPVC pipes are submerged in pH-controlled water for extended periods to ensure that any leaching of chemicals (like lead or tin stabilizers) remains well below the strict Maximum Allowable Levels (MAL).
NSF/ANSI 14: Quality and Performance
While Standard 61 covers health, NSF/ANSI 14 ensures the pipe is built to last. It verifies that the manufacturer follows strict quality control processes and that the pipe meets the physical requirements for pressure and temperature resistance defined by ASTM D2846.
WRAS (Water Regulations Advisory Scheme)
For projects following British or international standards, WRAS approval is essential. It confirms that the non-metallic material does not contaminate the water or promote the growth of microorganisms.
Kiwa and CSTB
In Europe, certifications from Kiwa (Netherlands) or CSTB (France) are often required. These certifications mirror the strictness of NSF, ensuring that CPVC meets regional safety and durability codes.
Installation Safety and Environmental Impact
(Illustrative purposes only)
The safety of a potable water system also depends on how it is joined. CPVC utilizes a solvent cement welding process. This creates a chemical bond that is stronger than the pipe itself. Unlike soldering copper, this process requires no heat or open flames, eliminating fire risks on the job site. Furthermore, CPVC’s low thermal conductivity reduces energy loss in hot water lines, contributing to the building’s overall LEED or green building rating.
Conclusion
Choosing CPVC for potable water is an investment in long-term safety and efficiency. By insisting on pipes that carry NSF/ANSI 61, NSF 14, and WRAS markings, stakeholders ensure that they are providing a non-toxic, corrosion-proof, and durable water delivery system. As urban populations grow and water quality becomes a global priority, CPVC for potable water remains at the forefront of safe plumbing technology.
